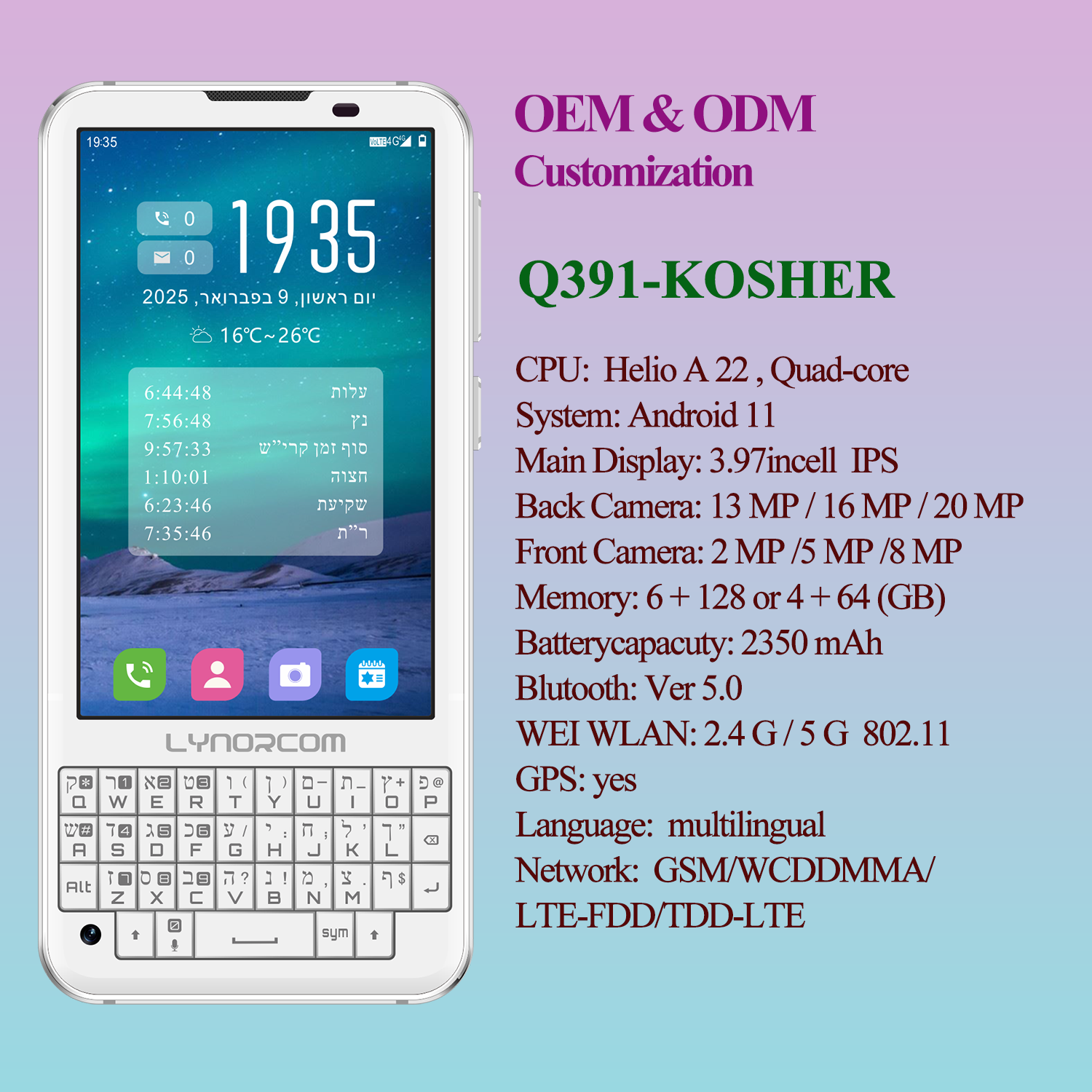

Q391-kosher [ODM & OEM[ High-quality Full Keyboard Smartphone Equipped with 3.97incell Quad-core Chip, 6GB+128GB Storage Space, 20MP Rear Camera

Short Description:

Detail ItemSpecifications1. General Feature Processor*CPUMT6761*GPUIMG GE8300, 6...


  • Product size: 152mm*71.5mm / 9.6mm
  • Product thickness: 9.6mm
  • Product weight:: 230g
  • Colour: Black/ White
  • Screen size: 3.97 incell IPS
  • Screen resolution: 480 x 800RGB(PPI 236)
  • Memory: 6GB+128GB/4GB+64GB
  • Camera: 8MP+13MP or 8MP+16MP or 8MP+20MP
  • Battery capacity: 2350mAh
  • Certification: FCC, CE, etc., support certification in various countries
  • Custom Mode: OEM / ODM
  • Mode Number: Q391-kosher

Product Detail

Product Tags




Detail ItemSpecifications






1. General Feature
◇ Processor
*CPUMT6761
*GPUIMG GE8300, 660MHZ
◇ Platform
*Operating systemAndroid 11
*UI InterfaceCustom icon
*LanguageEnglish, German, French, Spanish, Hebrew, etc., multiple languages
◇ RF Specification
*ModeGSM / WCDMA / LTE-FDD / TDD LTE
*North American versionGSM: EGS850/DCS1800/PCS1900
WCDMA: B2/B4/B5
FDD:B2/B4/B5/B12/B13/B17/B25/B26/B66/B71
TDD: B40/B41
*Eurasian version  GSM: 850/900/1800/1900
  WCDMA: B1/B2/B8
  FDD:B1/B2/B3/B7/B8/B20/B28A&B
  TDD: B38/B39/B40/B41
*SIM card slot2 Card slot

2. Phone Specification (Hardware)
◇ Display
*Main display dimensions3.97 incell IPS
*Main display technologyTFT
*Main display resolution480 x 800 RGB
*Main display PPI236
◇ Back Camera
*Pixel13MP/16MP/20MP/21MP
*Camera technologyCMOS
*Auto FocusYes
*Flash lightYes
◇ Front Camera
*Pixel2MP/5MP8MP
*Camera technologyCMOS
*Auto FocusN/A
*Flash lightN/A
◇ Storage
*EMCP4GB+64GB or 6GB+128GB
*Extended StorageNot Supported
*Max memory card sizeNot Supported
◇ USB
*USB revisionUSB2.0
*USB chargingYes
*OTGYes
*System I/O connectorType-C
◇ Bluetooth
*Bluetooth revisionVer 5.0
◇ FM
*FM RadioYes.
*FM AntennaThrough headphone cable
◇ WLAN
*WLAN WLAN 2.4G/5G 802.11 a/b/g/n/ac
*WIFI hotspotYes
◇ GPS
*GPSYes, GPS/Glonass/Beidou/Galileo
*AGPSYes
◇ Sensor
*G-SensorYes
*Proximity sensorYes
*Light  sensorYes
*E-CompassYes
*Gyro SensorN/A
◇ NFC
*Operating modeOptional, Default None
*NFC antennaOptional
*NFC Application scenariosN/A
◇ Battery
*Battery technologyHigh-capacity lithium-ion battery
*Battery capacity 4.4V 2350mah
*Charging currentMax 1.5A
*Charging limit voltage4.4V
◇ Keypad / Button / Switch / RGB LED
*Power buttonYes, Together with end key
*Volume keysYes, Side buttons
*Keypadsqwerty Keypads
*Keypad Back-light colorWhite  lamp
*

◇ Physical Interface
*Audio jackYes, 3.5mm interface(CTIA)
*Charging jackType-C
*MICYes
*SpeakerBOX Speaker
*MotorYes
*ReceiverYes.Together with Speaker


Product hardware specifications:

- CPU: Helio A22 (MT6761), Quad-core ARM® Cortex-A53 MPCore TM  operating up to 2.0GHz

- GPU: IMG GE8300, 660MHz

- Android system: Android 11

 Language: English, German, French, Spanish, Hebrew, etc., multiple languages

- Network: GSM / WCDMA / LTE-FDD / TDD-LTE

North American version:

GSM: EGS850/DCS1800/PCS1900

WCDMA: B1/B2/B4/B5

FDD:B1/B2/B3/B4/B5/B7/B12/B13/B20/B17/B28A&B/B66/B71

Eurasian version:

GSM: 850/900/1800/1900

WCDMA: B1/B2/B5/B8

FDD:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A&B

TDD: B40/B41

- Display: 3.97 incell IPS High-definition Screen, 480x800 RGB, PPI 236

- Touchscreen: Support,  Capacitive touch screen. High sensitivity, Drop resistance.

- Camera:  8MP+16MP or 8MP+20MP

- Memory: 6GB+128GB or 4GB+64GB

- Memory Card: supported

- Battery capacity: Built-in lithium-ion polymer battery, 2350 mAh, Not removable

- Charging capacity: 1.5A fast charging

Bluetooth: Supports Bluetooth 5.0 dual mode

WLAN: Support WIFI Dual-band (2.4/5GHz) single stream 802.11 ac/a/b/g/n, Supports Wi-Fi HotSpot 2.0

GPS: Support GPS/Glonass/Beidou/Galileo/QZSS

FM Radio: Yes, 65-108MHz with 50kHz step, Through earphone antenna

NFC: Support, Optional


Other Features:

Receiver: Support, High quality receiver, together with speaker.

Motor: Yes

Speaker: High fidelity cavity BOX speaker

MIC: Yes

G-Sensor: Yes

Proximity sensor: Yes

Light  sensor: Yes

E-Compass: No

Gyro Sensor: No

Keypads: T9 Keypads

Charging jack: Yes, Type-C

headphone jack: Yes, 3.5mm interface(CTIA)

USB: Type-C, USB 2.0

OTG: Yes



SYSTEM AND APP:

- Deep modification system based on Android 11 system, extensively modified to adapt to keyboard phones

- No browser, no internet connection

- No games

- Disable video playback
